40w Motor Electric Horizontal Testing Machine Test Speed 0 ~ 300mm / Min

Name: 40w Motor Electric Horizontal Testing Machine Test Speed 0 300mm Min
Brand: JIEDONG
Price: 1 USD

Brand Name : JIEDONG

Model Number : JD-1003D

Place of Origin : Guangdong, China

MOQ : 1

Price : negotiate

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Supply Ability : 80 sets per month

Delivery Time : 20 workdays after order confirmed

Packaging Details : standard export plywood

Measurement selection : 50kg, 20kg, 10kg, 5kg, 2kg can be selected.

Maximum stroke (without clamp) : 250mm

Test speed : 0～300mm/min arbitrarily adjustable

weight : 15kg (about)

Operating Voltage : 220V/50HZ

Rated current : 2A

stroke : 50mm

Contact Now

40w Motor Electric Horizontal Testing Machine Test Speed 0 ~ 300mm / Min

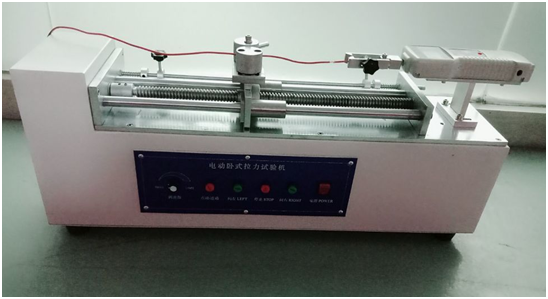

Electric horizontal tensile testing machine JD-1003D

product description:

The electric horizontal tensile testing machine has the advantages of wide application range, convenient use, etc., and has stepless speed regulation, manual (jog), automatic control switching function. It is suitable for the physical test test of tensile strength and insertion force of rubber, light industrial textile, composite materials, wire and cable, machinery parts and other industries.

The main technical parameters:

1. Measurement choice: 50kg, 20kg, 10kg, 5kg, 2kg can choose one.

2, the maximum stroke (without fixture): 250mm.

3, test speed: 0 ~ 300mm / min can be adjusted.

4, optional (digital display and index) push-pull force meter

5, function switch: left / stop / right / jog function

6, motor: AC frequency conversion 40W motor.

7, weight: 20kg

8, working voltage: 220V/50HZ

9, rated current: 2A

10, configuration: host, tension meter, distribution power cord, hex tools, fixtures.
